Product name:Intelligent PLC control zero-gravity arm
Press the thumbnail on the right to zoom in
Press the thumbnail on the right to zoom in
Product operation-related audio and video
Product specifications
More
Intelligent PLC control zero-gravity arm integration technology
◆An upgraded version for the intelligent electronically controlled zero-gravity arm, able to perform more complex movements.
◆The PLC's data computing capability allows easy integration of various control systems (EX: safety valve control unit, check valve and tank unit air cut-off protection, brake unit, clamp and load self-locking protection, etc...), for easier and more convenient operation.
Product Size
| Product size | Measurement (Unit: mm) | ||||||
| Model | Load (KG) | H1 | B | C | E | H2 | R |
| FS80 | 80 | 2900 | 1800 | 300 | 1515 | 2330 | 2480 |
| FS120 | 120 | 2900 | 1800 | 300 | 1515 | 2330 | 2480 |
| FS150 | 150 | 2900 | 1800 | 300 | 1515 | 2330 | 2480 |
| FS200 | 200 | 2900 | 1800 | 300 | 1515 | 2330 | 2480 |
| FS250 | 250 | 2900 | 1800 | 300 | 1515 | 2330 |
2480 |
Product description
More

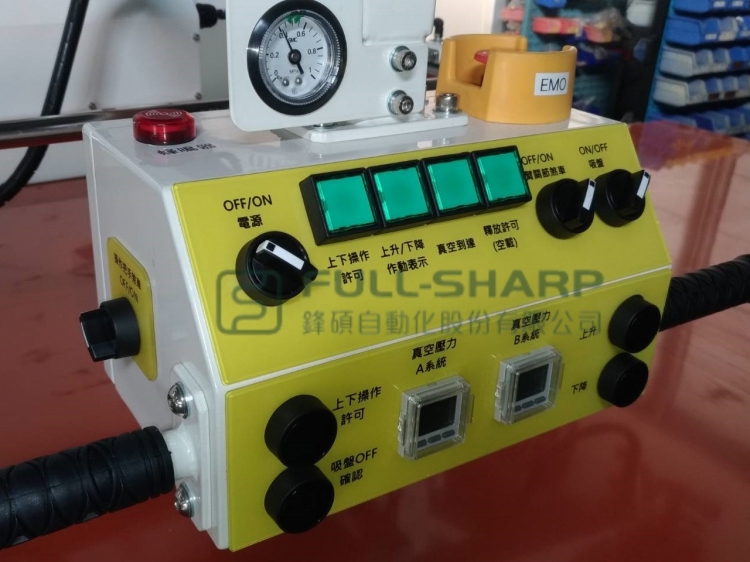

1. PLC coding control is used to monitor the various units and movements of the robot arm, and the indicator lights on control panel are used to ensure the correctness and safety of the operator's operation.
2. High reliability and anti-tampering ability: it is equipped with self-detection function for hardware fault, which can send out alert message even when a fault occurs.
3. Easy wiring, by programming input
4. Easy maintenance, monitored on the coder
5. Easy modification or expansion of the function, by re-programming
6. Smaller size and lighter weight compared to conventional relays.
