Product specifications

￭ Easy operation, fast and correct ascending/descending and vacuum suction and release control, easy to carry for all ages and genders.
￭ No need for electricity or external power, able to generate its own vacuum for operation with high safety.
￭ Suitable for ferrous and non-ferrous products, indoor and outdoor, anything to be moved, stored and transported.
￭ Able to handle horizontal or non-porous materials quickly, effectively and efficiently, without damaging the surface of iron plate or other materials.
￭ No vibration issue during moving and absolutely no damage to the workpiece.
￭ Various types of suction cup fixtures are available to fit different workpieces.
￭ Customized design and manufacture according to the site requirements.

Product Size

Basic drawing of dimension (customized OK)



Product description

More

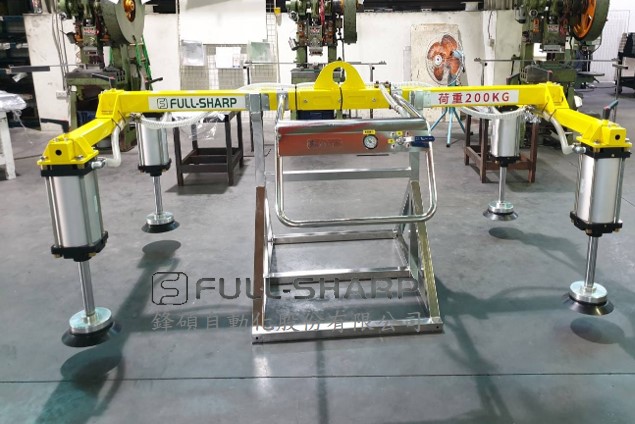

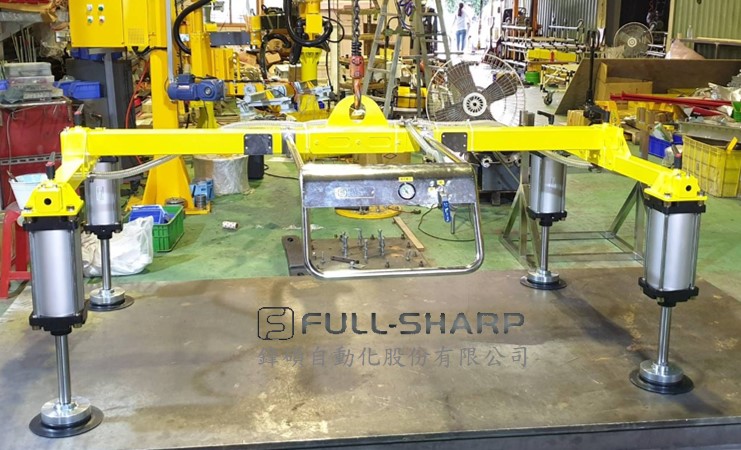

Self-powered suction iron plate fixture (hanging from overhead crane):
1.Load: 300kg
2.Vacuum suction pad (adjustable)

*Workpiece
1.Steel plate
2.Dimension: 6.0 x 4" x 8" & 6.0 x 5" x 10
3.Weight of load max: 300kg

Remarks
