Product name:Zero-gravity Manipulator

 Press the thumbnail on the right to zoom in

Zero-gravity Manipulator

 Press the thumbnail on the right to zoom in

Product operation-related audio and video

More

Product specifications

More

1.Load: 5kg~80kg, 5kg~120kg, 5kg~200kg
2.Compressed air is used as gravity source 6-7kg/cm2
3.Lifting head: 1500mm
4.Jib length: 2500mm * 360 degrees
5.Fixing methods: A. Pillar jib arm type; B. Upside down fixed type; C. Patio moving type

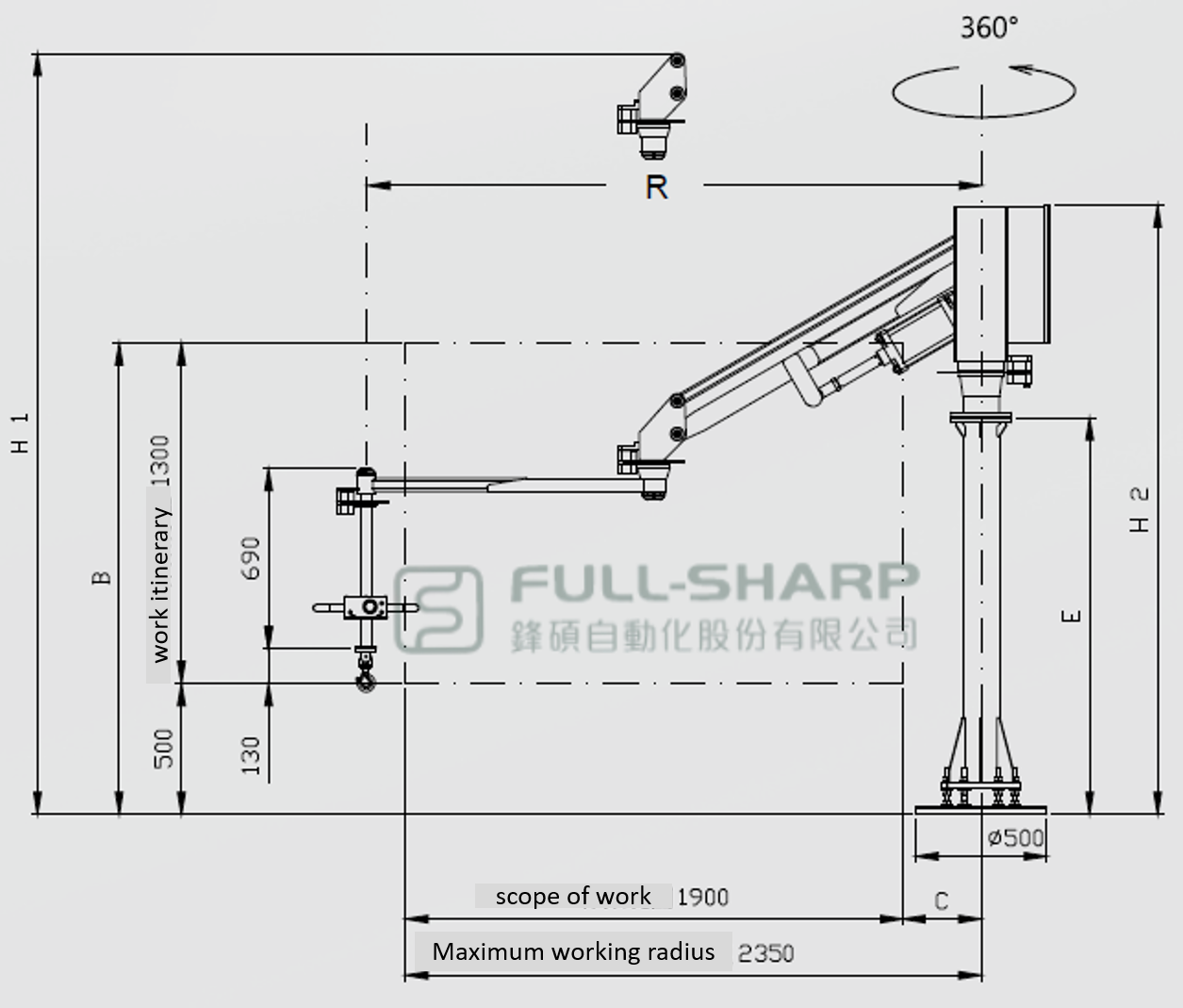

Product Size



Product size    Measurement (Unit: mm)
Model Load (KG) H1 B C E H2 R
FS80 80 2900 1800 300 1515 2330 2480
FS120 120 2900 1800 300 1515 2330 2480
FS150 150 2900 1800 300 1515 2330 2480
FS200 200 2900 1800 300 1515 2330 2480
FS250 250 2900 1800 300 1515 2330 2480

Product description

More

1.The equipment is pneumatically balanced, and allows free move or precise alignment action for the workpiece in balance by the arm.
2.The equipment is a steel structure, so there is no shaking of workpiece, because the steel structure can be designed to reach inside the machine for parts pick-up.
3.The equipment has safety valve loop control, for users without worry about sudden suspension of air supply from the air pressure source or the sudden drop of the workpiece.
4.The equipment can be customized according to the environment, and for custom circuit needs.
~~The manipulators from our company are self-made products, and we are not general agents or hardware companies.~~

Remarks

Can be made in the following types:

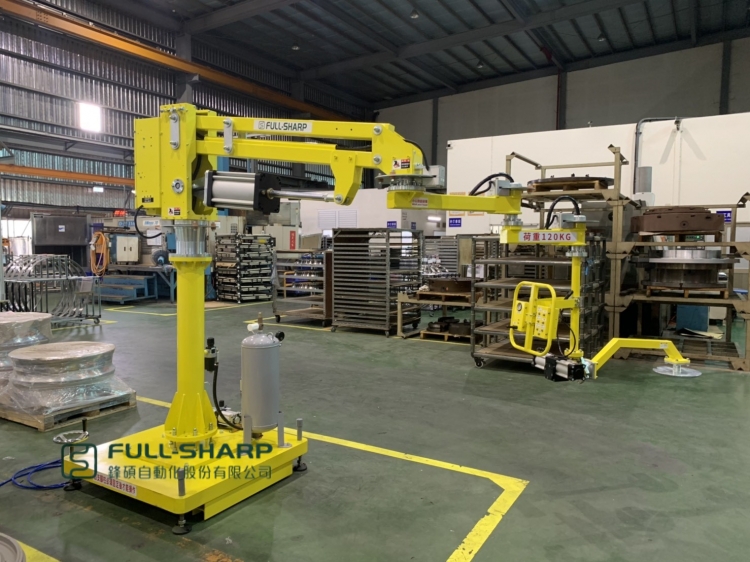

1. Pillar type
2. Wall-mount type
3. Patio upside down type
4. Pallet shifting type

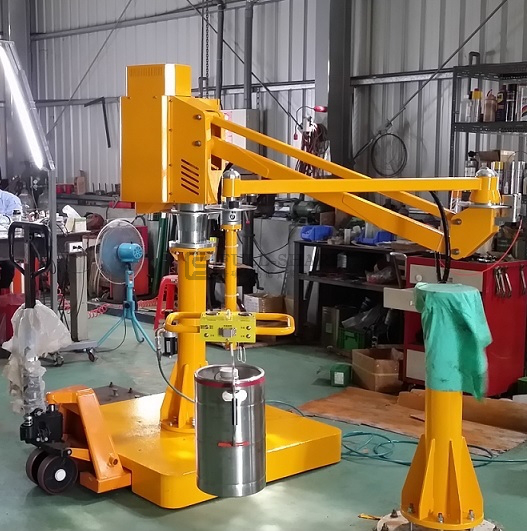

5. Trolley type
~~~~ Custom made manipulators available for special environment ~~~~
